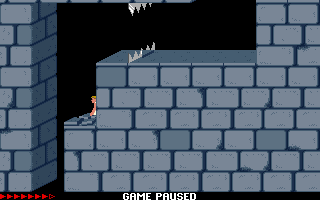

This issue is reproducible easily with the "draw_sword_anywhere" branch. But it can happen at specific pixels when you jump and grab the ledge right before the chomper.
The problem seems to happen in the function linked below. If the "if" statement that checks for fall is false, it re-renders tiles above and below kid. And sometimes the "char_col_right" points to the chomper. The "set_redraw2" function messes an open chomper up.
https://github.com/NagyD/SDLPoP/blob/90 ... 003.c#L468
I created a simple fix that tracks if you are falling and skips rendering of chomper tiles. But I am wondering if there is a more elegant fix that David usually finds.
Another graphical glitch
Another graphical glitch
Last edited by dmitrys on April 30th, 2021, 1:54 am, edited 1 time in total.
- atrueprincefanfrom18
- Site Shah
- Posts: 1786
- Joined: January 21st, 2020, 2:53 pm
- Contact:
Re: Another graphical glitch
I've seen it before in the normal SDLPoP package too. Check this at 1:24 timestamp.
Re: Another graphical glitch
It looks from your video that the bug can also happen when prince is dropping down to a row that has a chomper.
Edit: It is definitely reproducible as well.
Edit: It is definitely reproducible as well.
Re: Another graphical glitch

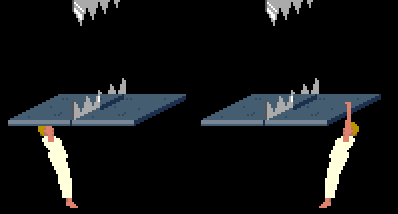

It also happens when you hang below the chomper like this:
I have also seen it in Run, Prince! Run! (level 3):
Re: Another graphical glitch
Yes, the "redraw_at_char2" function is also responsible for hanging. This is the fix I came up with.
Edit: "get_tile" function cannot be used because changing "curr_tile2" causes a bug when falling down into another room.
Edit: "get_tile" function cannot be used because changing "curr_tile2" causes a bug when falling down into another room.
Code: Select all
// redraws all tiles except chompers when falling/hanging
// next to a chomper to avoid artifacts under the chomper
void set_redraw_at_char2(short tilepos, byte frames) {
int tile;
if (curr_room > 0) {
tile = curr_room_tiles[tilepos] & 0x1F;
} else {
tile = custom->level_edge_hit_tile;
}
if (tile != tiles_18_chomper) {
set_redraw2(tilepos, frames);
}
}
// seg003:0645
void __pascal far redraw_at_char2() {
short char_action;
short char_frame;
void __pascal (* redraw_func)(short, byte);
char_action = Char.action;
char_frame = Char.frame;
redraw_func = &set_redraw_at_char2;
// frames 78..80: grab
if (char_frame < frame_78_jumphang || char_frame >= frame_80_jumphang) {
// frames 135..149: climb up
if (char_frame >= frame_137_climbing_3 && char_frame < frame_145_climbing_11) {
redraw_func = &set_redraw_floor_overlay;
} else {
// frames 102..106: fall
if (char_action != actions_2_hang_climb && char_action != actions_3_in_midair &&
char_action != actions_4_in_freefall && char_action != actions_6_hang_straight &&
(char_action != actions_5_bumped || char_frame < frame_102_start_fall_1 || char_frame > frame_106_fall)) {
return;
}
}
}
for (tile_col = char_col_right; tile_col >= char_col_left; --tile_col) {
if (char_action != 2) {
redraw_func(get_tilepos(tile_col, char_bottom_row), 1);
}
if (char_top_row != char_bottom_row) {
redraw_func(get_tilepos(tile_col, char_top_row), 1);
}
}
}
